Slint Kit Documentation

Layout

KitWrap

Layout that reflows children onto multiple lines.

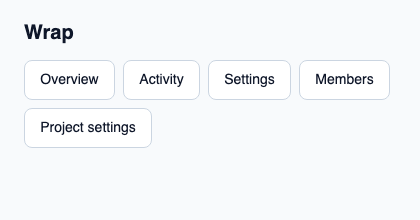

Layout that reflows children onto multiple lines.
Native screenshot of the same example, rendered with Skia.

Add badges, buttons or other ordinary children and set gap and inset. Let the parent provide the wrapping width.

It uses FlexboxLayout with flex-wrap: wrap. Child instances remain in place during resizing, preserving focus and editor state.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitTheme, KitThemes, KitWrap } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitWrap example";
    preferred-width: 420px;
    preferred-height: 220px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Wrap"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitWrap { KitButton { theme: root.theme; text: "Overview"; activated => { root.status = "Action requested"; } }KitButton { theme: root.theme; text: "Activity"; activated => { root.status = "Action requested"; } }KitButton { theme: root.theme; text: "Settings"; activated => { root.status = "Action requested"; } }KitButton { theme: root.theme; text: "Members"; activated => { root.status = "Action requested"; } }KitButton { theme: root.theme; text: "Project settings"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits FlexboxLayout. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
gap LayoutSpace in
inset LayoutSpace in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum LayoutSpace none, tight, compact, regular, roomy, section
