KitTooltipLayer

Window layer displaying the focused target’s tooltip.

Window layer displaying the focused target’s tooltip.

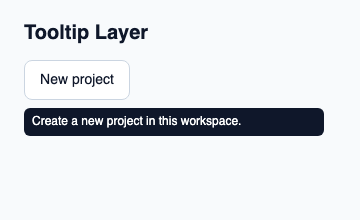

Native screenshot of the same example, rendered with Skia.

Mount one instance last at each window root and supply viewport-width and viewport-height. Disable enabled when a modal or another screen hides triggers.

Placement uses window coordinates to avoid clipping by scrolling ancestors. The layer contains no focus targets, and dismiss() hides the current owner.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitTheme, KitThemes, KitTooltip, KitTooltipLayer } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitTooltipLayer example";
    preferred-width: 360px;
    preferred-height: 220px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Tooltip Layer"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitTooltip { theme: root.theme; text: "Create a new project in this workspace."; target-focused: true; viewport-width: root.width; viewport-height: root.height; KitButton { theme: root.theme; text: "New project"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
    KitTooltipLayer { viewport-width: root.width; viewport-height: root.height; }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
enabled bool in
viewport-width length in
viewport-height length in

Functions

See also
