Selection

KitSelectKeyboard

Shared keyboard translator for composed selectors and menus.

Shared keyboard translator for composed selectors and menus.

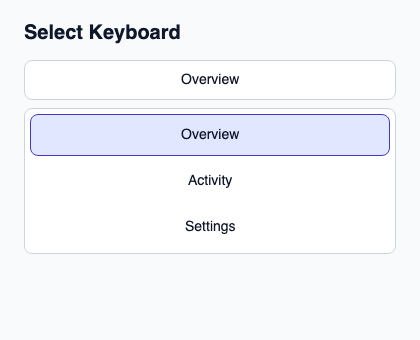

Native screenshot of the same example, rendered with Skia.

Place it in the control that owns focus, or call handle-key(event) from a trigger primitive. Connect its callbacks to the controller using the same SelectState.

It translates keys into NavigationStep, CloseReason, token activation and typeahead. The controller retains selection, identity and disabled-item navigation rules; tab-navigation returns an EventResult.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitOption, KitSelectKeyboard, KitSelectTrigger, KitTheme, KitThemes, SelectionAvailability } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitSelectKeyboard example";
    preferred-width: 420px;
    preferred-height: 340px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Select Keyboard"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitSelectKeyboard { init => { self.focus(); } state: { open: true, generation: 1, active-index: 0, active: { present: true, token: 11 }, selected: { present: true, token: 11 }, selection-availability: SelectionAvailability.available }; navigate(step) => { root.status = "Keyboard navigation requested"; } activate(token, generation) => { root.status = "Activation requested for token " + token; } VerticalLayout { spacing: 8px; KitSelectTrigger { theme: root.theme; state: { open: true, generation: 1, active-index: 0, active: { present: true, token: 11 }, selected: { present: true, token: 11 }, selection-availability: SelectionAvailability.available }; accessible-name: "Project navigation"; Text { text: "Overview"; color: root.theme.text-primary; vertical-alignment: center; font-size: 14px * root.theme.text-scale; } } Rectangle { background: root.theme.surface-raised; border-color: root.theme.border-subtle; border-width: 1px; border-radius: 8px; VerticalLayout { padding: 6px; spacing: 4px; for row in [{ token: 11, generation: 1, label: "Overview", description: "Project summary", disabled: false }, { token: 23, generation: 1, label: "Activity", description: "Recent changes", disabled: false }, { token: 38, generation: 1, label: "Settings", description: "Project preferences", disabled: false }]: KitOption { theme: root.theme; option-data: row; active: row.token == 11; selected: row.token == 11; height: 42px; Text { text: row.label; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; vertical-alignment: center; horizontal-alignment: left; } } } } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits FocusScope. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
state SelectState in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum CloseReason escape, outside-press, system-back, trigger-toggle, programmatic, host-closed
enum NavigationStep next, previous, first, last, page-next, page-previous
enum SelectionAvailability absent, available, unavailable
struct SelectionRef present: bool, token: int
struct SelectState selection-availability: SelectionAvailability, selected: SelectionRef, active: SelectionRef, open: bool, active-index: int, generation: int

Callbacks

Functions

See also
