KitBreadcrumbs

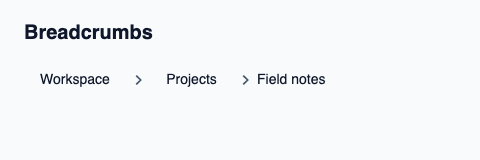

Breadcrumb trail linking parent levels to the current location.

Supply OptionRow values from the root level to the current level. Handle activate(token, generation) to open a parent destination.

The final item is current-location text without an action; preceding items remain named buttons. The bar can scroll horizontally for long paths.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitBreadcrumbs, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitBreadcrumbs example";
    preferred-width: 480px;
    preferred-height: 160px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Breadcrumbs"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitBreadcrumbs { theme: root.theme; rows: [{ token: 11, generation: 1, label: "Workspace", disabled: false }, { token: 23, generation: 1, label: "Projects", disabled: false }, { token: 38, generation: 1, label: "Field notes", disabled: false }]; }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name	Type	Direction
`theme`	`KitTheme`	`in`
`control-size`	`ControlSize`	`in`
`rows`	`[OptionRow]`	`in`

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type	Declaration
`enum ControlSize`	`compact, medium, comfortable`
`struct OptionRow`	`token: int, generation: int, label: string, description: string, disabled: bool`

Callbacks

activate(int, int)
