Slint Kit Documentation

Times and zones

KitDateTimeField

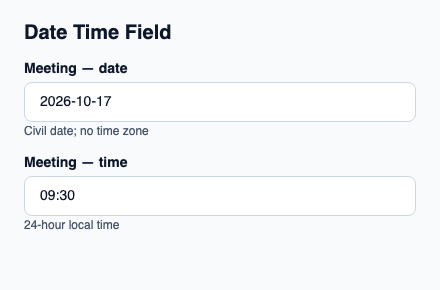

Two native editors composing one local date-and-time draft.

Two native editors composing one local date-and-time draft.
Native screenshot of the same example, rendered with Skia.

Bind date-text and time-text and supply accepted-value: LocalDateTimeView. Handle edited and commit-requested with their LocalDateTimeDraft payload.

Each request carries both texts so the controller can accept them together. date-error and time-error present failures without accepting half a value.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
// Display projections are fixtures. Validate accepted domain values in Rust.
import { KitDateTimeField, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitDateTimeField example";
    preferred-width: 440px;
    preferred-height: 290px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Date Time Field"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitDateTimeField { theme: root.theme; label: "Meeting"; date-text: "2026-10-17"; time-text: "09:30"; }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
control-size ControlSize in
access FieldAccess in
accepted-value LocalDateTimeView in
clock-format ClockFormat in
precision TimePrecision in
label string in
date-error string in
time-error string in
date-text string in-out
time-text string in-out

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
struct CivilDateView year: int, month: int, day: int
enum ClockFormat twenty-four-hour, twelve-hour
enum ControlSize compact, medium, comfortable
enum FieldAccess editable, read-only, disabled
struct LocalDateTimeDraft date: string, time: string
struct LocalDateTimeView date: CivilDateView, time: LocalTimeView
struct LocalTimeView hour: int, minute: int, second: int
enum TimePrecision minute, second

Callbacks

Functions

See also
