Slint Kit Documentation

Choices and values

KitRating

Score selection with an explicit clear action.

Score selection with an explicit clear action.

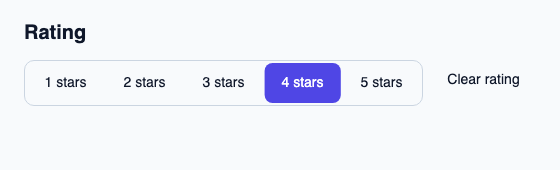

Native screenshot of the same example, rendered with Skia.

Supply scores: [ChoiceRow], generation and active-token from the rating controller. Handle choose(token, generation) separately from clear-requested.

The presentation composes KitSegmentedControl and a clear action. No rating remains an explicit domain state, distinct from the first score.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitRating, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitRating example";
    preferred-width: 560px;
    preferred-height: 170px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Rating"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitRating { theme: root.theme; label: "Your rating"; generation: 1; active-token: 4; scores: [{ token: 1, label: "1 stars", selected: false, disabled: false }, { token: 2, label: "2 stars", selected: false, disabled: false }, { token: 3, label: "3 stars", selected: false, disabled: false }, { token: 4, label: "4 stars", selected: true, disabled: false }, { token: 5, label: "5 stars", selected: false, disabled: false }]; }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
control-size ControlSize in
access FieldAccess in
scores [ChoiceRow] in
generation int in
active-token int in
label string in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
struct ChoiceRow token: int, label: string, disabled: bool, selected: bool
enum ControlSize compact, medium, comfortable
enum FieldAccess editable, read-only, disabled
enum NavigationStep next, previous, first, last, page-next, page-previous

Callbacks
