Dialogs

KitDialogPanel

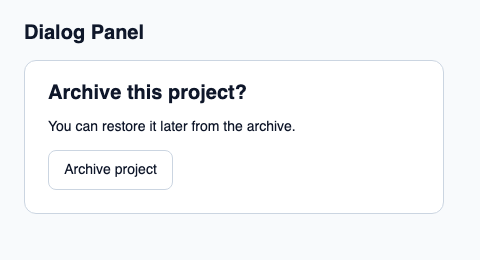

Dialog content surface with an accessible name.

Dialog content surface with an accessible name.
Native screenshot of the same example, rendered with Skia.

Place it inside KitDialogSurface and set its geometry, accessible-name and description. Compose header, body and footer in a child layout.

It paints a raised surface and consumes clicks that would reach the backdrop. It decides neither dialog placement nor close policy.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitDialogPanel, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitDialogPanel example";
    preferred-width: 480px;
    preferred-height: 260px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Dialog Panel"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitDialogPanel { theme: root.theme; width: 420px; height: dialog-content.preferred-height; horizontal-stretch: 0; vertical-stretch: 0; accessible-name: "Archive project"; dialog-content := VerticalLayout { padding: 24px; spacing: 16px; alignment: start; Text { text: "Archive this project?"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; wrap: word-wrap; vertical-stretch: 0; }Text { text: "You can restore it later from the archive."; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; vertical-stretch: 0; }KitButton { theme: root.theme; text: "Archive project"; activated => { root.status = "Action requested"; } }if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; vertical-stretch: 0; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
accessible-name string in
accessible-description-text string in
