Dialogs

KitDialogSurface

Modal host managing the scrim, close requests and focus traversal.

Modal host managing the scrim, close requests and focus traversal.

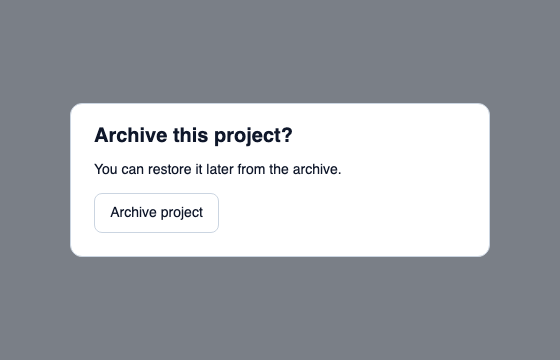

Native screenshot of the same example, rendered with Skia.

Render it last in its window and supply DialogState from OverlayStack. Place a KitDialogPanel in its children and connect focus-next(bool) to the registry of actual targets.

Only the topmost modal handles Escape and Tab traversal; busy prevents closing. A backdrop click requests CloseReason.outside-press when dismiss-on-backdrop is enabled.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitDialogPanel, KitDialogSurface, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitDialogSurface example";
    preferred-width: 560px;
    preferred-height: 360px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    KitDialogSurface { theme: root.theme; width: parent.width; height: parent.height; state: { open: true, topmost: true, busy: false }; KitDialogPanel { theme: root.theme; width: 420px; x: (parent.width - self.width) / 2; y: (parent.height - self.height) / 2; height: dialog-content.preferred-height; horizontal-stretch: 0; vertical-stretch: 0; accessible-name: "Archive project"; dialog-content := VerticalLayout { padding: 24px; spacing: 16px; alignment: start; Text { text: "Archive this project?"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; wrap: word-wrap; vertical-stretch: 0; }Text { text: "You can restore it later from the archive."; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; vertical-stretch: 0; }KitButton { theme: root.theme; text: "Archive project"; activated => { root.status = "Action requested"; } }if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; vertical-stretch: 0; } } } }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
state DialogState in
dismiss-on-backdrop bool in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum CloseReason escape, outside-press, system-back, trigger-toggle, programmatic, host-closed
struct DialogState open: bool, topmost: bool, busy: bool

Callbacks
