Slint Kit Documentation

Selection

KitSelectSurface

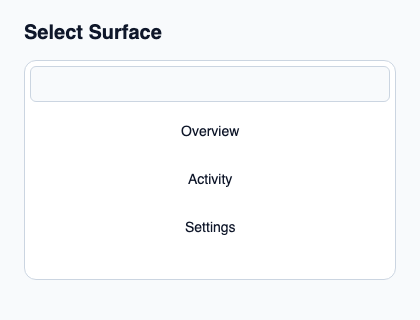

Popup surface combining native search, keyboard handling and active-option visibility.

Popup surface combining native search, keyboard handling and active-option visibility.
Native screenshot of the same example, rendered with Skia.

Place a virtualized list of KitOption children and bind scroll-y to that list’s scroll position. Supply its visible height in viewport-height and a matching row-height.

searchable and focus-search-on-open choose presentation and initial focus. ensure-active-visible() follows state.active-index, while query-edited passes the search draft without deciding selection.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitOption, KitSelectSurface, KitTheme, KitThemes, SelectionAvailability } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitSelectSurface example";
    preferred-width: 420px;
    preferred-height: 320px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Select Surface"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitSelectSurface { theme: root.theme; height: 220px; state: { open: true, generation: 1, active-index: 0, active: { present: true, token: 11 }, selected: { present: true, token: 11 }, selection-availability: SelectionAvailability.available }; VerticalLayout { for row in [{ token: 11, generation: 1, label: "Overview", description: "Project summary", disabled: false }, { token: 23, generation: 1, label: "Activity", description: "Recent changes", disabled: false }, { token: 38, generation: 1, label: "Settings", description: "Project preferences", disabled: false }]: KitOption { theme: root.theme; option-data: row; height: 48px; Text { text: row.label; color: root.theme.text-primary; vertical-alignment: center; font-size: 14px * root.theme.text-scale; } } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
state SelectState in
row-height length in
viewport-height length in
searchable bool in
focus-search-on-open bool in
empty bool in
empty-label string in
search-label string in
query string in-out
scroll-y length in-out
active-scroll-y length out

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum CloseReason escape, outside-press, system-back, trigger-toggle, programmatic, host-closed
enum NavigationStep next, previous, first, last, page-next, page-previous
enum SelectionAvailability absent, available, unavailable
struct SelectionRef present: bool, token: int
struct SelectState selection-availability: SelectionAvailability, selected: SelectionRef, active: SelectionRef, open: bool, active-index: int, generation: int

Callbacks

Functions

See also
