KitAccordion

Set of disclosure sections driven by stable identities.

Set of disclosure sections driven by stable identities.

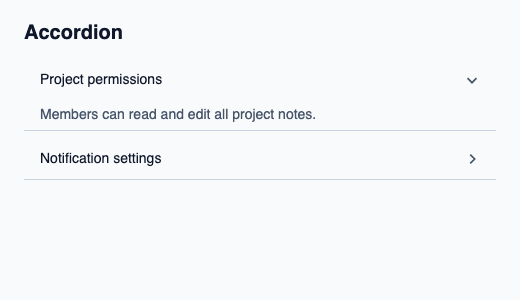

Native screenshot of the same example, rendered with Skia.

Supply DisclosureRow values and state, then handle expansion-requested(token, generation, expanded, mode). Choose ExpansionMode.single, the default, or .multiple.

The controller applies expansion policy and header navigation. Answers use row.item.description, and transitions respect reduced motion.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitAccordion, KitTheme, KitThemes, SelectionAvailability } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitAccordion example";
    preferred-width: 520px;
    preferred-height: 300px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Accordion"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitAccordion { theme: root.theme; rows: [{ item: { token: 11, generation: 1, label: "Project permissions", description: "Members can read and edit all project notes.", disabled: false }, expanded: true }, { item: { token: 23, generation: 1, label: "Notification settings", description: "Choose how you receive updates.", disabled: false }, expanded: false }]; state: { open: false, generation: 1, active-index: 0, active: { present: true, token: 11 }, selected: { present: true, token: 11 }, selection-availability: SelectionAvailability.available }; }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits VerticalLayout. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
control-size ControlSize in
rows [DisclosureRow] in
state SelectState in
mode ExpansionMode in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum ControlSize compact, medium, comfortable
struct DisclosureRow item: OptionRow, expanded: bool
enum ExpansionMode single, multiple
enum NavigationStep next, previous, first, last, page-next, page-previous
struct OptionRow token: int, generation: int, label: string, description: string, disabled: bool
enum SelectionAvailability absent, available, unavailable
struct SelectionRef present: bool, token: int
struct SelectState selection-availability: SelectionAvailability, selected: SelectionRef, active: SelectionRef, open: bool, active-index: int, generation: int

Callbacks
