Slint Kit Documentation

Layout

KitSurface

Single painted surface for composed content.

Single painted surface for composed content.

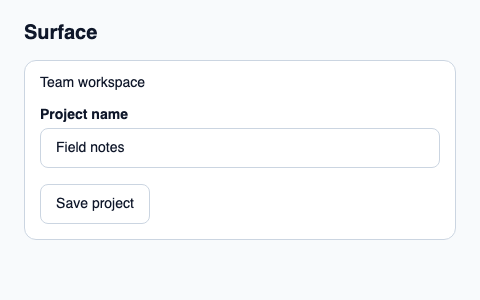

Native screenshot of the same example, rendered with Skia.

Choose SurfaceLevel.flat or .raised, SurfaceBorder.none or .subtle, then inset and gap. Place content in its children.

It owns the background and padding without intercepting pointer or focus events. Compose an action with KitPressable when a surface should be interactive.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitSurface, KitTextField, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitSurface example";
    preferred-width: 480px;
    preferred-height: 300px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Surface"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitSurface { theme: root.theme;Text { text: "Team workspace"; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; }KitTextField { theme: root.theme; label: "Project name"; text: "Field notes"; }KitButton { theme: root.theme; text: "Save project"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
level SurfaceLevel in
border SurfaceBorder in
inset LayoutSpace in
gap LayoutSpace in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum LayoutSpace none, tight, compact, regular, roomy, section
enum SurfaceBorder none, subtle
enum SurfaceLevel flat, raised
