Slint Kit Documentation

Selection

KitSelectTrigger

Customizable trigger sharing selector interactions.

Customizable trigger sharing selector interactions.

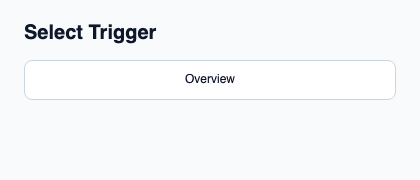

Native screenshot of the same example, rendered with Skia.

Compose its non-interactive content and provide state with an accessible name. Forward open-requested, dismiss, navigate and activate to the controller.

It inherits KitPressable and exposes a combobox role with expanded state. Clicking an open selector requests CloseReason.trigger-toggle; keys pass through KitSelectKeyboard.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitSelectTrigger, KitTheme, KitThemes, SelectionAvailability } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitSelectTrigger example";
    preferred-width: 420px;
    preferred-height: 180px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Select Trigger"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitSelectTrigger { theme: root.theme; Text { text: "Overview"; color: root.theme.text-primary; vertical-alignment: center; } state: { open: false, generation: 1, active-index: 0, active: { present: true, token: 11 }, selected: { present: true, token: 11 }, selection-availability: SelectionAvailability.available }; activate(token, generation) => { root.status = "Activated stable token " + token; } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits KitPressable. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
state SelectState in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum CloseReason escape, outside-press, system-back, trigger-toggle, programmatic, host-closed
enum NavigationStep next, previous, first, last, page-next, page-previous
enum SelectionAvailability absent, available, unavailable
struct SelectionRef present: bool, token: int
struct SelectState selection-availability: SelectionAvailability, selected: SelectionRef, active: SelectionRef, open: bool, active-index: int, generation: int

Callbacks

See also
