KitColorField

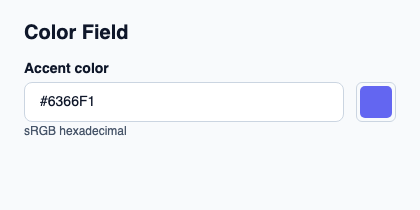

sRGB hexadecimal field with a swatch and popup picker.

Bind text to the draft, accepted-color to the validated projection and swatch to its rendered color. Choose ColorAlphaMode.opaque or .editable and handle text requests or color-requested.

The picker opens a local draft from the accepted color; the application accepts only the final request. SrgbColorView channels are sRGB bytes, without implicit HSL or linear RGB conversion.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitColorField, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitColorField example";
    preferred-width: 420px;
    preferred-height: 210px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Color Field"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitColorField { theme: root.theme; label: "Accent color"; swatch: #6366f1; accepted-color: { red: 99, green: 102, blue: 241, alpha: 255 }; text: "#6366F1"; }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name	Type	Direction
`theme`	`KitTheme`	`in`
`control-size`	`ControlSize`	`in`
`access`	`FieldAccess`	`in`
`alpha-mode`	`ColorAlphaMode`	`in`
`accepted-color`	`SrgbColorView`	`in`
`swatch`	`color`	`in`
`label`	`string`	`in`
`error`	`string`	`in`
`text`	`string`	`in-out`
`picker-open`	`bool`	`out`

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type	Declaration
`enum ColorAlphaMode`	`opaque, editable`
`enum ControlSize`	`compact, medium, comfortable`
`enum FieldAccess`	`editable, read-only, disabled`
`struct SrgbColorView`	`red: int, green: int, blue: int, alpha: int`

Callbacks

edited(string)
commit-requested(string)
cancelled()
color-requested(SrgbColorView)

Functions

open-picker()
cancel-picker()
take-focus()
