Layout

KitScrollArea

Vertical scrolling area for a content column.

Allocate a finite viewport from the parent and add children in reading order. Use reveal(top, bottom) to show a region and scroll-to-start() to return to the beginning.

The column follows the visible width and grows vertically; horizontal scrolling is disabled. This container does not virtualize its children.

View source ↗

Complete example

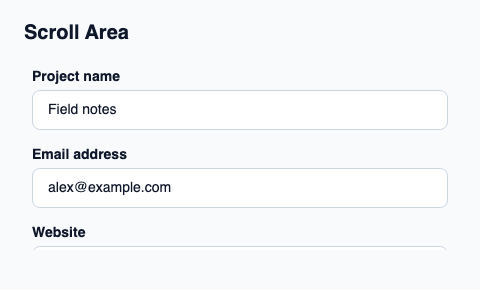

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitScrollArea, KitTextArea, KitTextField, KitTheme, KitThemes, LayoutSpace } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitScrollArea example";
    preferred-width: 480px;
    preferred-height: 290px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Scroll Area"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitScrollArea { height: 190px; inset: LayoutSpace.compact; gap: LayoutSpace.regular; KitTextField { theme: root.theme; label: "Project name"; text: "Field notes"; } KitTextField { theme: root.theme; label: "Email address"; text: "alex@example.com"; } KitTextField { theme: root.theme; label: "Website"; text: "https://example.com"; } KitTextField { theme: root.theme; label: "Phone"; text: "+1 514 555 0132"; } KitTextArea { theme: root.theme; label: "Notes"; text: "Keep observations and decisions together."; } KitButton { theme: root.theme; text: "Save project"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits ScrollView. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Functions

• scroll-to-start()
• reveal(top: length, bottom: length)
