Slint Kit Documentation

Display

KitCard

Card surface for grouping a unit of content.

Card surface for grouping a unit of content.

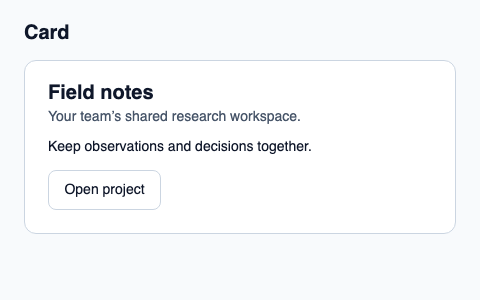

Native screenshot of the same example, rendered with Skia.

Compose KitCardHeader, KitCardBody and KitCardFooter as children. Set inset and gap with LayoutSpace instead of adding a second padding layer.

The card owns a border, background and content-measured height. It does not capture clicks or implicitly become an action.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitCard, KitCardBody, KitCardFooter, KitCardHeader, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitCard example";
    preferred-width: 480px;
    preferred-height: 300px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Card"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitCard { theme: root.theme; KitCardHeader { theme: root.theme; title: "Field notes"; description: "Your team’s shared research workspace."; } KitCardBody { Text { text: "Keep observations and decisions together."; color: root.theme.text-primary; font-size: 14px * root.theme.text-scale; wrap: word-wrap; } } KitCardFooter { KitButton { theme: root.theme; text: "Open project"; activated => { root.status = "Action requested"; } } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
theme KitTheme in
inset LayoutSpace in
gap LayoutSpace in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum LayoutSpace none, tight, compact, regular, roomy, section
