Form structure

KitFieldSeparator

Subtle rule separating groups within a form.

Insert it between sections of KitFieldGroup when the structure needs a visual separator. Supply the same theme as adjacent fields.

The line is one pixel high and uses border-subtle. It adds neither a heading nor section spacing.

View source ↗

Complete example

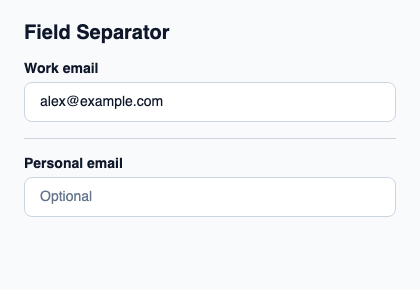

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitFieldSeparator, KitTextField, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitFieldSeparator example";
    preferred-width: 420px;
    preferred-height: 290px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Field Separator"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitTextField { theme: root.theme; label: "Work email"; text: "alex@example.com"; } KitFieldSeparator { theme: root.theme; } KitTextField { theme: root.theme; label: "Personal email"; placeholder: "Optional"; }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits Rectangle. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties
