Layout

KitInline

Single row for adjacent controls and content.

Single row for adjacent controls and content.

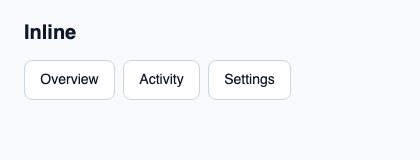

Native screenshot of the same example, rendered with Skia.

Choose gap, inset and the inherited HorizontalLayout alignment. Set horizontal stretch on children that should consume extra space.

The row keeps a natural height and does not wrap. Use KitWrap when children should reflow onto multiple lines.

View source ↗

Complete example

This complete Slint file is a visual composition used to produce the screenshot above. Internal strings without a label property retain the kit’s default language; system dialogs follow the host platform. Projected state and callbacks requesting a decision need host wiring; the standalone fixture does not supply that controller. Set up the Rust project, then see the typed controller application for working editing, validation and selection.

// SPDX-License-Identifier: GPL-3.0-or-later
import { KitButton, KitInline, KitTheme, KitThemes } from "@kit/kit.slint";

export component Example inherits Window {
    title: "KitInline example";
    preferred-width: 420px;
    preferred-height: 160px;
    max-width: 100000px;
    max-height: 100000px;
    background: root.theme.canvas;
    in-out property <KitTheme> theme: KitThemes.light;
    in-out property <string> status;
    VerticalLayout {
        padding: 24px; spacing: 16px; alignment: start;
        Text { text: "Inline"; color: root.theme.text-primary; font-size: 20px * root.theme.text-scale; font-weight: 600; }
        KitInline { KitButton { theme: root.theme; text: "Overview"; activated => { root.status = "Action requested"; } }KitButton { theme: root.theme; text: "Activity"; activated => { root.status = "Action requested"; } }KitButton { theme: root.theme; text: "Settings"; activated => { root.status = "Action requested"; } } }
        if root.status != "": Text { text: root.status; color: root.theme.text-secondary; font-size: 12px * root.theme.text-scale; wrap: word-wrap; }
    }
}

Download this example

Public API

Inherits HorizontalLayout. The declarations below come from the component source. Parent properties remain available; see the controller guide for state management.

Properties

Name Type Direction
gap LayoutSpace in
inset LayoutSpace in

Types and variants

Names below use Slint syntax. Shared Rust domain types live in slint_kit; presentation enums come from the Rust types generated by Slint.

Type Declaration
enum LayoutSpace none, tight, compact, regular, roomy, section
